🏭 Advantages of Swiss CNC Sliding Head Machining Components

Introduction

In the era of advanced precision manufacturing, industries demand high accuracy, speed, and consistency in every component. Among the many machining technologies available today, Swiss CNC Sliding Head Machining stands out for its ability to produce complex, tight-tolerance components with unmatched quality and repeatability.

At Brassfit Group, we are proud to be a leading manufacturer and exporter of high-quality Brass, Stainless Steel, Aluminium, and Copper Sliding Head Machined Components. Our manufacturing facilities are equipped with state-of-the-art Swiss CNC machines, and we operate under ISO 9001, ISO 14001, and ISO 45001 certifications, ensuring quality, safety, and sustainability in every component we produce.

⚙️ What is Swiss CNC Sliding Head Machining?

Swiss CNC Sliding Head Machining — also known as Swiss-Type Turning — was originally developed in Switzerland for producing precision watch parts. Unlike conventional CNC lathes where the workpiece remains stationary, in Swiss-type machines, the bar stock slides through a guide bushing close to the cutting tool.

This design drastically reduces material deflection, allowing for exceptional accuracy and surface finish even on small-diameter or long, slender components.

Key features include:

• Main and sub-spindles for simultaneous front- and back-end machining

• Up to 20 tools operating at once for multi-operation machining

• Capable of producing parts up to 150 mm long with ultra-tight tolerances

• Perfect concentricity and superior mirror-finish results

🧠 Top Advantages of Swiss CNC Sliding Head Machining Components

1. Superior Dimensional Accuracy

Swiss-type machines offer micron-level precision due to their guided support design. The guide bushing holds the bar close to the cutting point, minimizing vibration and deflection. This results in:

• Exceptional tolerance control

• Excellent repeatability

• Smooth surface finish

It’s the ideal process for precision parts like nozzles, shafts, pins, and miniature valve components.

2. Ability to Machine Complex Geometries

Swiss CNC machines enable multi-axis machining, allowing turning, milling, drilling, threading, and grooving — all in one setup. This integrated machining process:

• Reduces re-fixturing errors

• Saves setup and handling time

• Enables creation of intricate and custom shapes

Thus, it’s perfect for producing complex and high-performance components for critical applications.

3. Outstanding Surface Finish

Swiss machining ensures mirror-polished surfaces and often eliminates the need for secondary polishing or grinding. The stable and rigid cutting environment guarantees consistent surface finishes — a vital requirement in sectors like medical, aerospace, and hydraulics.

4. High Productivity and Efficiency

Swiss CNC machines are designed for continuous and unattended operation. Their bar-feeding mechanism allows automatic loading, which makes them ideal for high-volume production. Benefits include:

• Fast cycle times

• Simultaneous multi-axis operations

• High spindle speeds and quick tool changes

Result: faster delivery times and lower per-piece cost without compromising on quality.

5. Multi-Material Capability

Swiss CNC Sliding Head Machining can handle a wide range of ferrous and non-ferrous materials, including:

• Brass (CZ121, CZ360, CZ132, etc.)

• Stainless Steel (AISI 303, 304, 316, 416)

• Aluminium (6061, 6082)

• Copper, Bronze, Mild Steel, and Special Alloys

This flexibility allows Brassfit Group to meet the diverse needs of various industries with precision and consistency.

6. Perfect for Long and Slender Components

Because the bar is supported by a guide bushing, the machine can produce long, thin, and high-aspect-ratio parts without bending or deflection. Typical examples:

• Actuator rods

• Spindles

• Sensor shafts

• Valve stems

• Precision pins

These components can reach up to 150 mm length with perfect straightness and flawless finish.

7. Fewer Secondary Operations

Swiss CNC machines perform multiple operations — turning, threading, milling, and drilling — in one setup. This eliminates the need for additional machining stages, resulting in:

• Faster production cycles

• Reduced handling errors

• Lower overall manufacturing cost

8. Cost-Effective Production

While Swiss CNC technology is highly sophisticated, it is extremely cost-efficient in the long run. It reduces scrap, ensures repeat accuracy, and supports unattended production — all of which contribute to:

• Lower operating costs

• Faster turnaround times

• Consistent quality across high-volume batches

9. Widely Used Across Industries

The precision, reliability, and efficiency of Swiss CNC Sliding Head Machined Components make them essential in numerous industries, including:

• Aerospace and Defense

• Automotive and Transportation

• Medical and Dental Equipment

• Electronics and Instrumentation

• Hydraulics and Pneumatics

• Telecommunication and Connectors

• Industrial Valves and Assemblies

Every component manufactured by Brassfit Group undergoes strict inspection and quality testing to ensure the highest performance and durability.

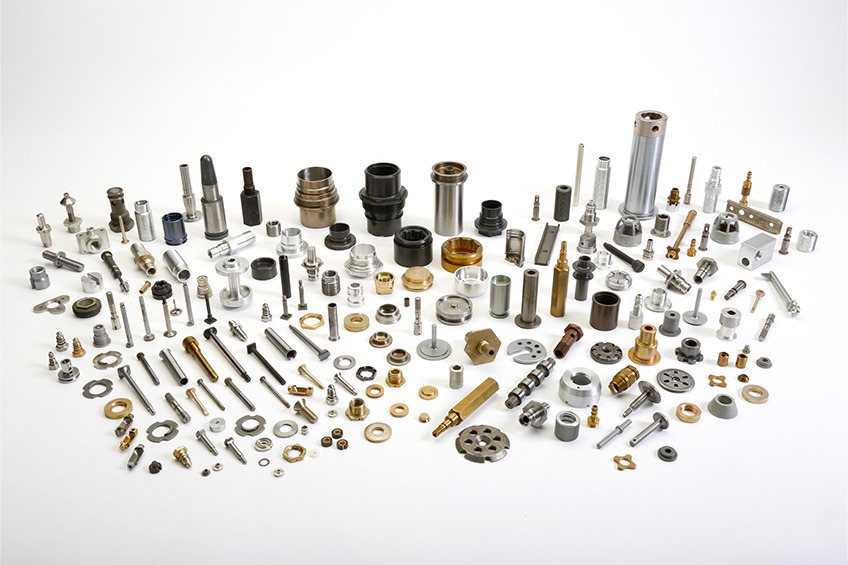

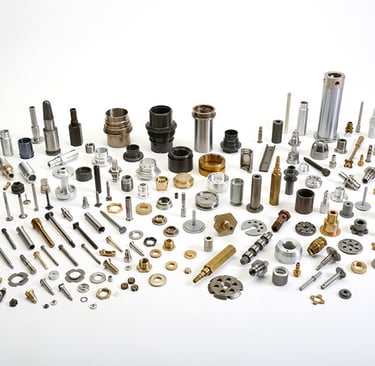

🧩 Applications of Swiss CNC Sliding Head Components

Some popular applications include:

• Precision Shafts, Pins, and Spindles

• Pneumatic & Hydraulic Fittings

• Nozzles and Jet Assemblies

• Connectors & Couplings

• Electrical Terminals and Sensor Housings

• Custom OEM Turned Parts

🌍 Why Choose Brassfit Group for Swiss CNC Sliding Head Machined Components?

• ISO 9001, ISO 14001 & ISO 45001 Certified Manufacturing Facility

• Advanced Swiss CNC Machines (Citizen, Star, Tsugami, Tornos)

• Experienced Engineers & Technicians

• Custom OEM & Contract Manufacturing Capabilities

• Global Export Network — USA, Europe, and Asia

• Prompt Support & Guaranteed Quality Assurance

At Brassfit Group, precision is our promise. With decades of expertise, cutting-edge technology, and a commitment to sustainable growth, we deliver world-class machined components that meet international standards.

For inquiries or quotations, contact us at:
📧 sales@swissscrewmachinedparts.com

❓ Frequently Asked Questions (FAQs)

Q1. What tolerance levels are achievable with Swiss CNC machines?
Swiss CNC machining can achieve precision tolerances up to ±0.005 mm, ideal for intricate and high-performance components.

Q2. What materials can Brassfit Group machine using Swiss CNC technology?
We can machine Brass, Stainless Steel, Aluminium, Copper, Bronze, and Mild Steel, among others.

Q3. Are Swiss CNC components suitable for high-volume production?
Yes. Swiss CNC machines are built for automated, continuous production, making them perfect for large-scale runs with consistent quality.

Q4. Can Brassfit Group manufacture custom components?
Absolutely. We specialize in custom-engineered and OEM components, tailored to specific drawings, tolerances, and material requirements.

Q5. What industries use Swiss CNC Sliding Head Components?
Industries like automotive, aerospace, medical, pneumatics, and electronics depend on these precision components for reliable performance.
